Tweeter Group 1-Vifa DX25, XT25, D26, SS9500, and the Usher 9950
|
|
Home
|
| Driver page links
|
Frequency response

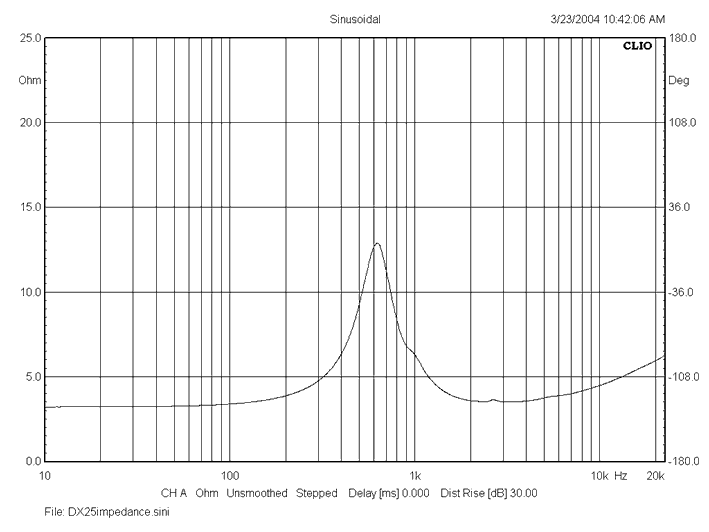

Impedance

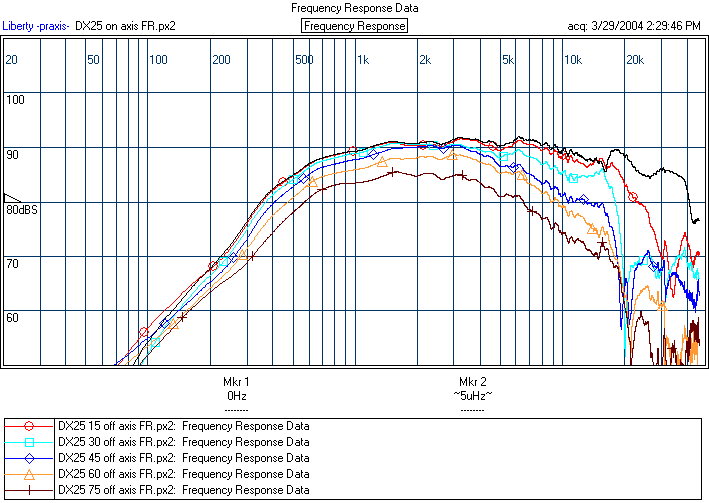

Off axis response

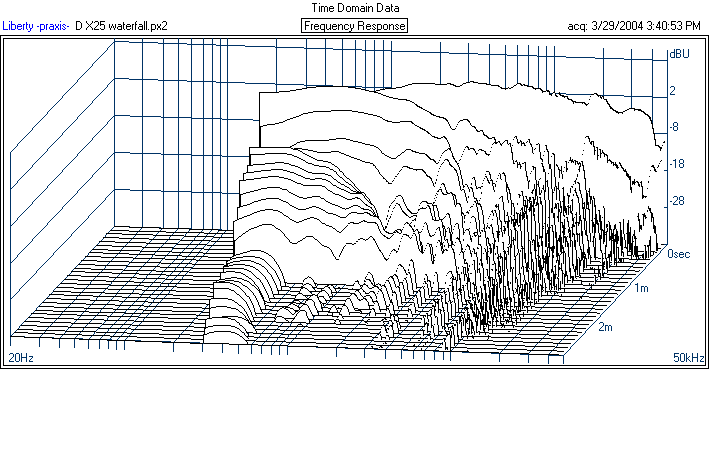

Waterfall
Linear distortion measurements

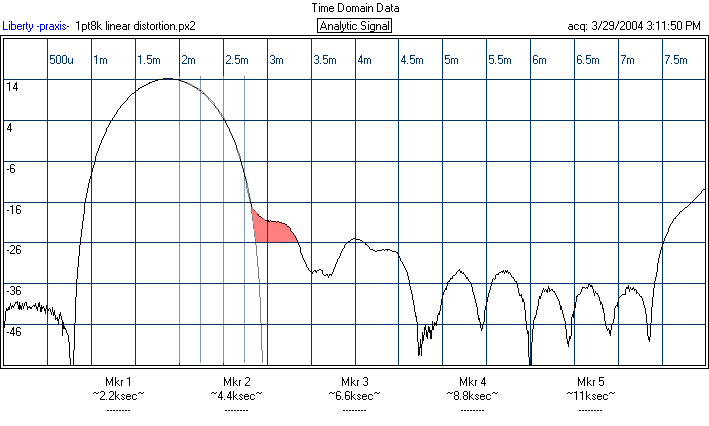

1.8k

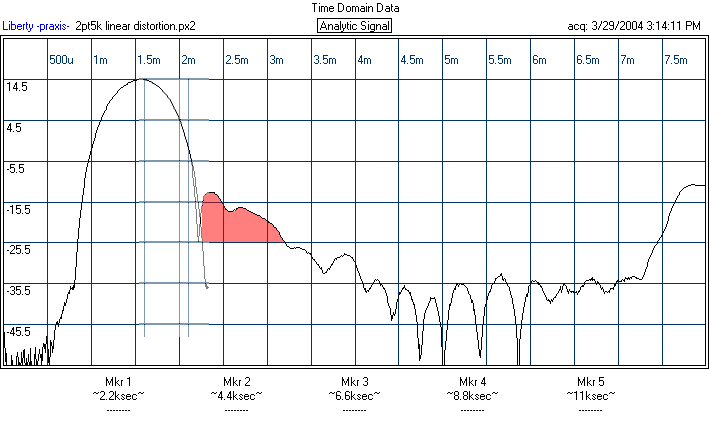

2.5k
4k

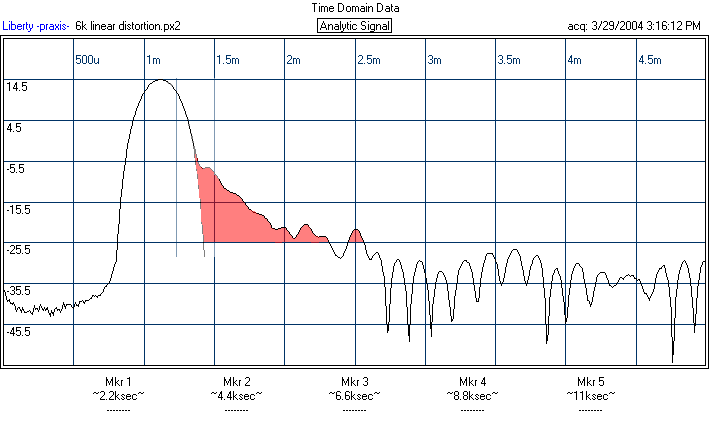

6k

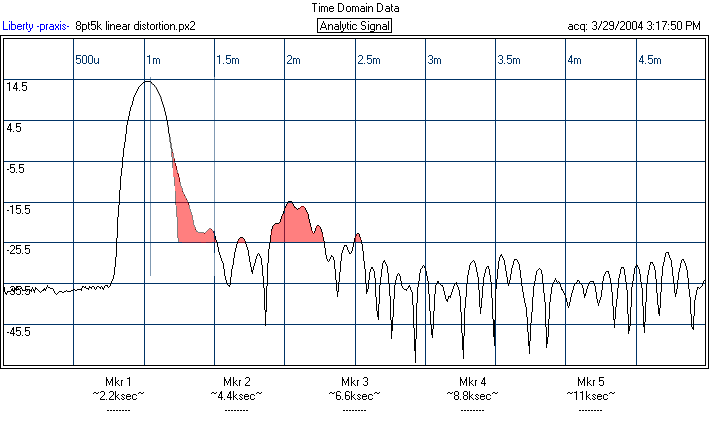

8.5k

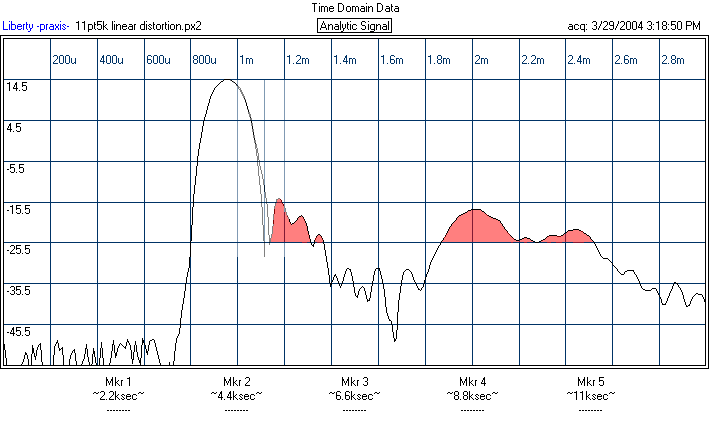

11.5k

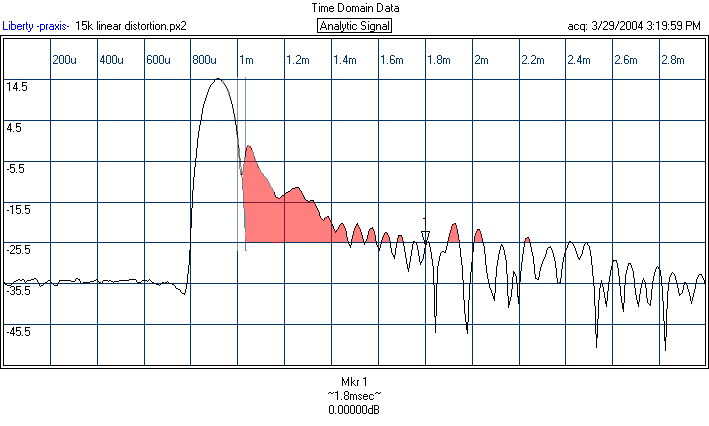

15k
Page 3- DX25 Nonlinear distortion measurements
UPDATED 10/3/04
The 1 kHz and 1.5kHz graphs are new. Note the scale is different. To compare the 1k and 1.5k graphs, it's probably best to open another copy of your browser and compare the Seas 27 series and Scan 9x00 series graphs to these two.

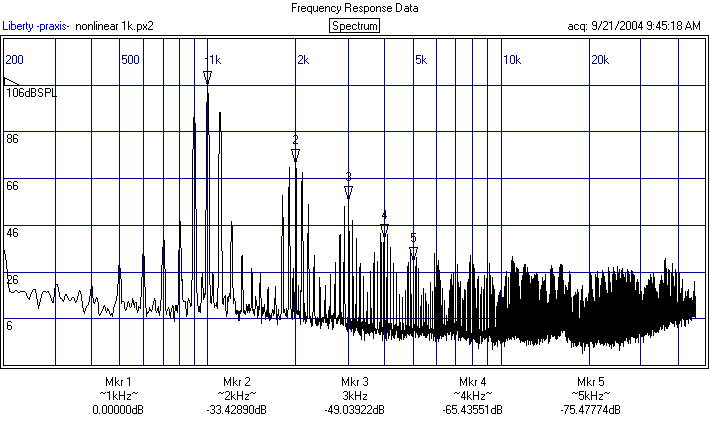

The DX25 at 1k

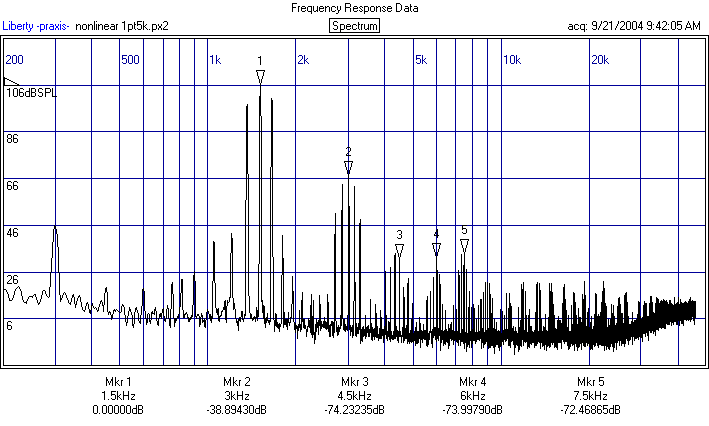

At 1.5k

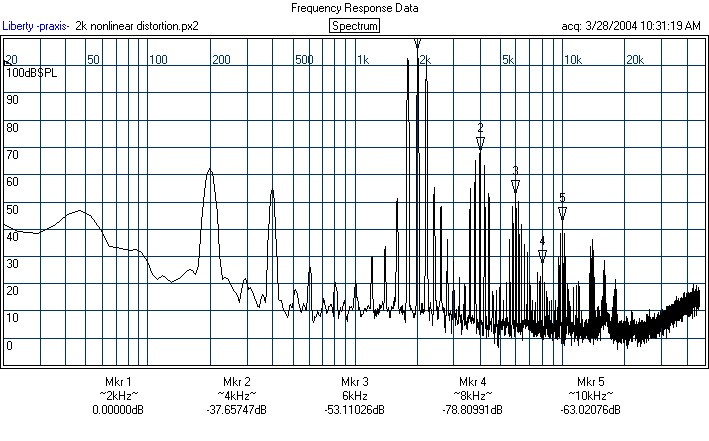

2k

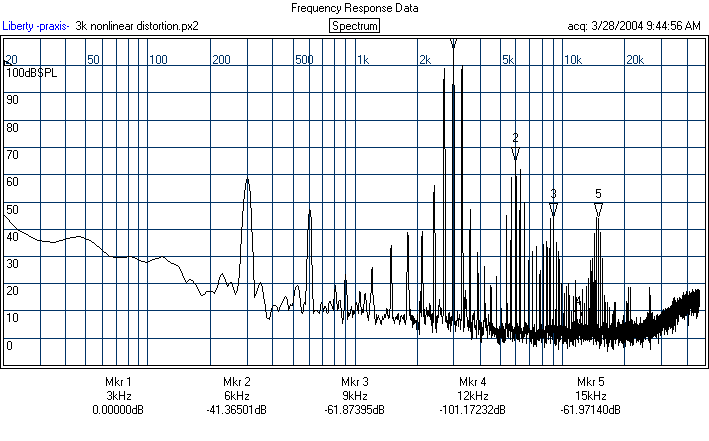

3k

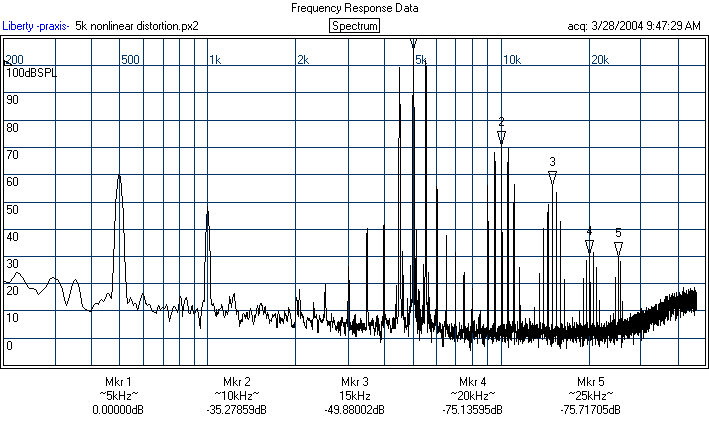

5k

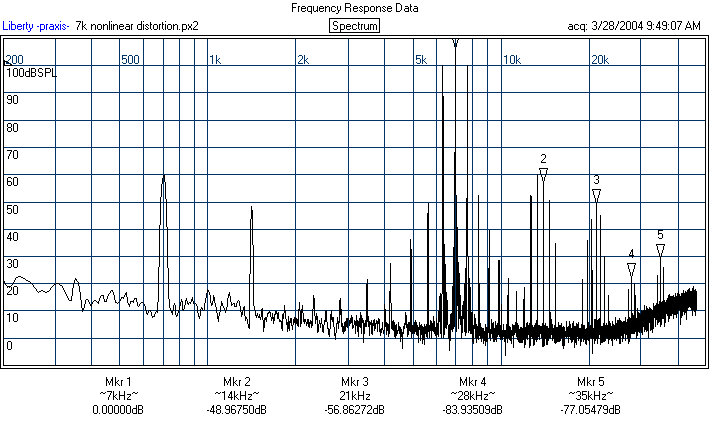

7k

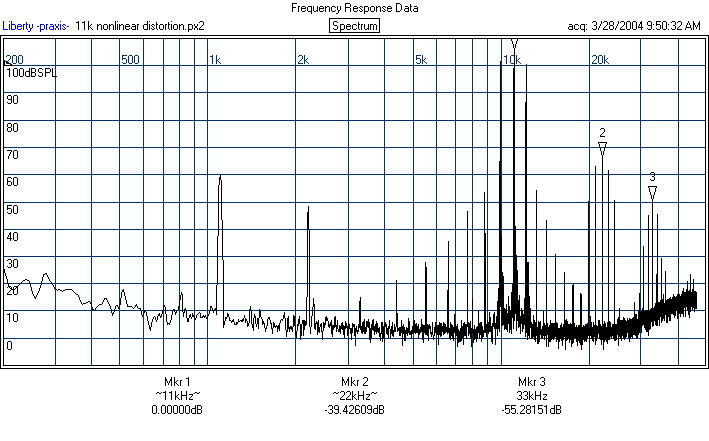

11k
