Human Speakers Pro 002 tweeter

As a reference, the curves are compared to similar curves for the Seas 27TDC.

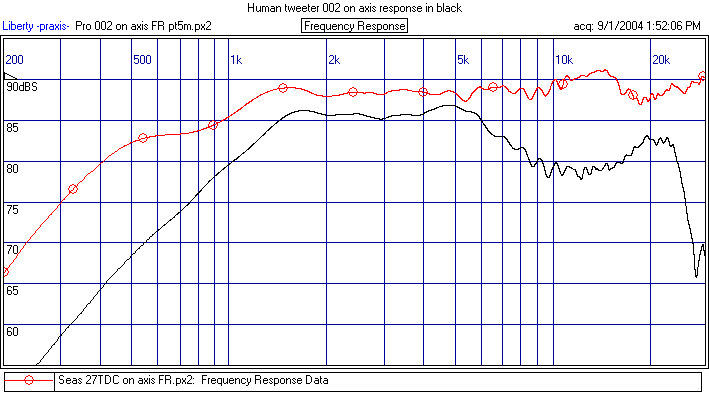

On axis frequency response.

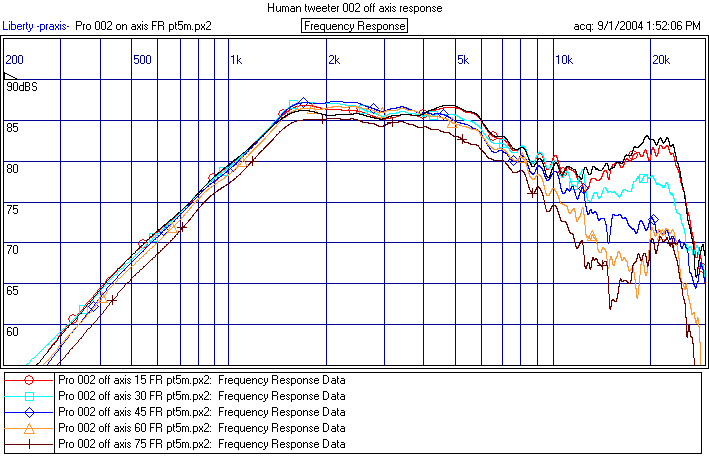

Off axis curves

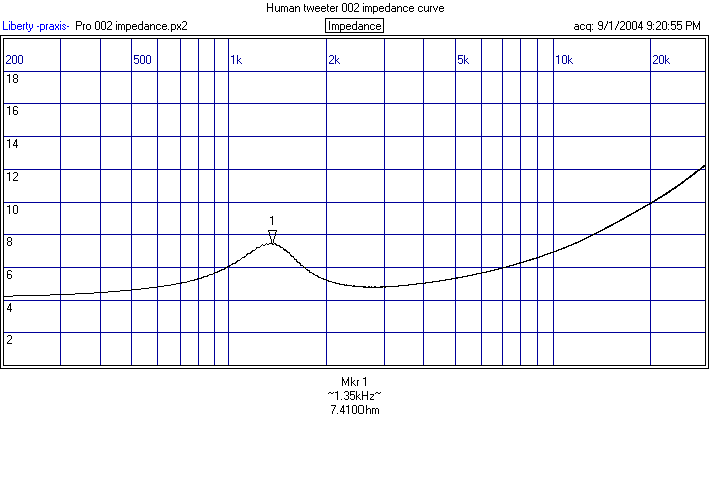

Impedance

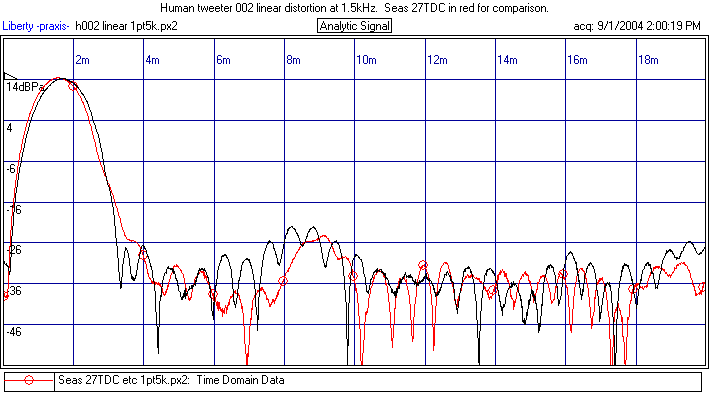

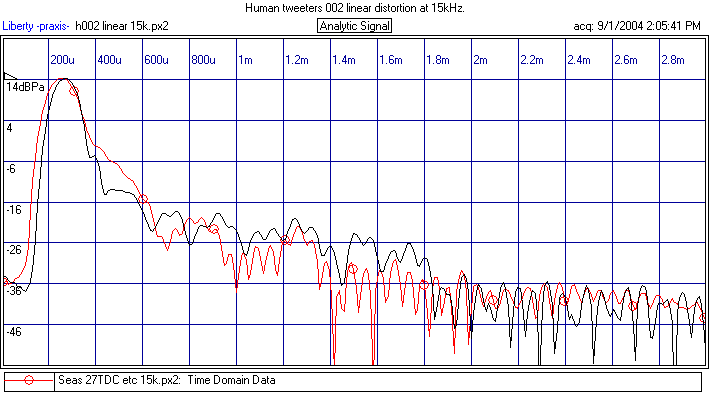

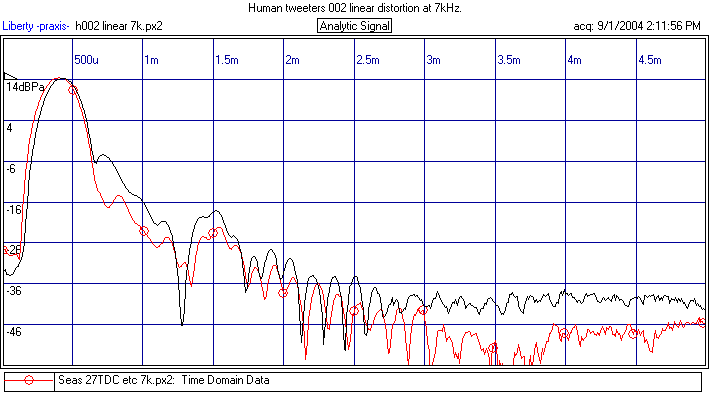

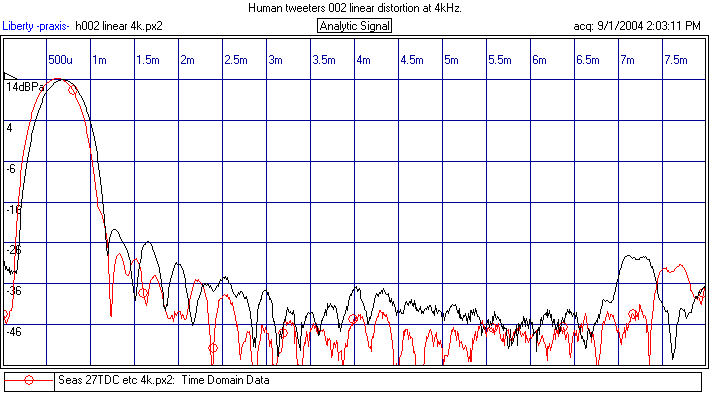

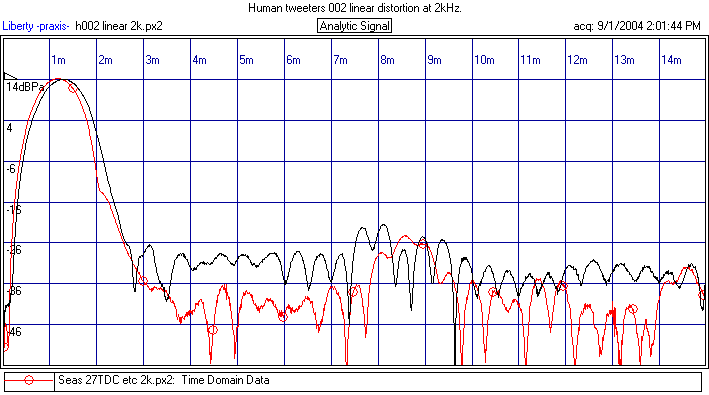

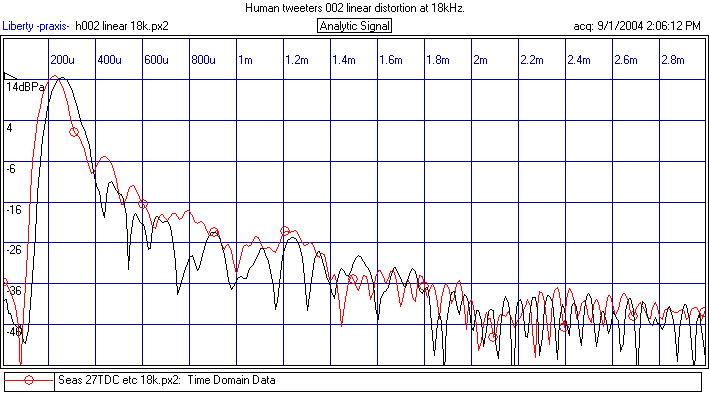

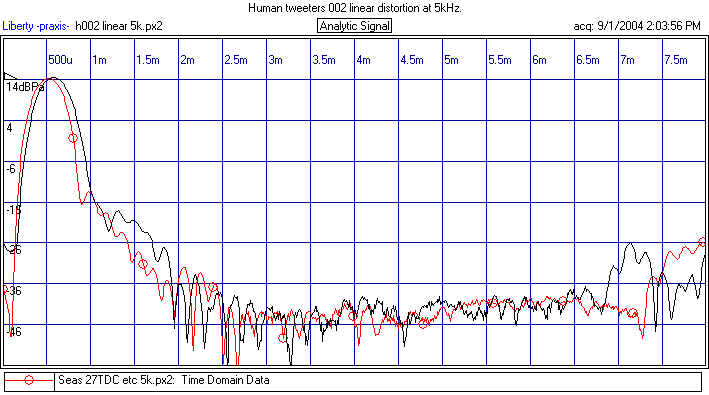

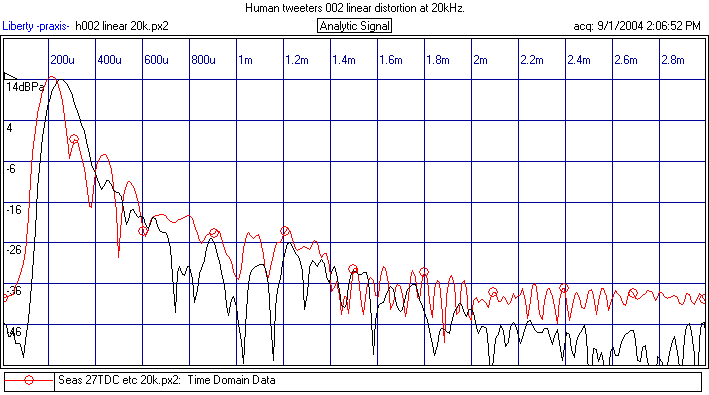

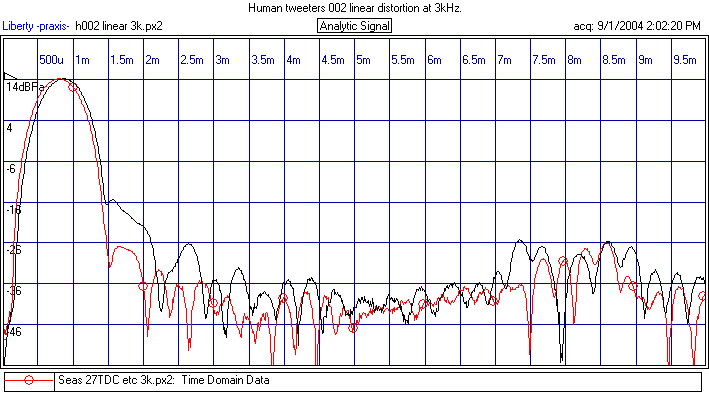

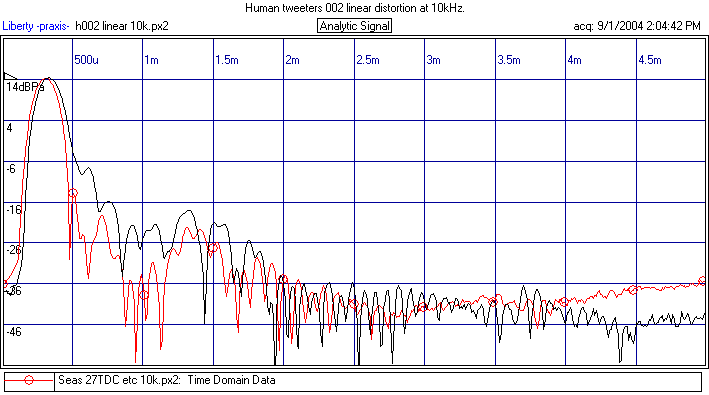

Linear distortion

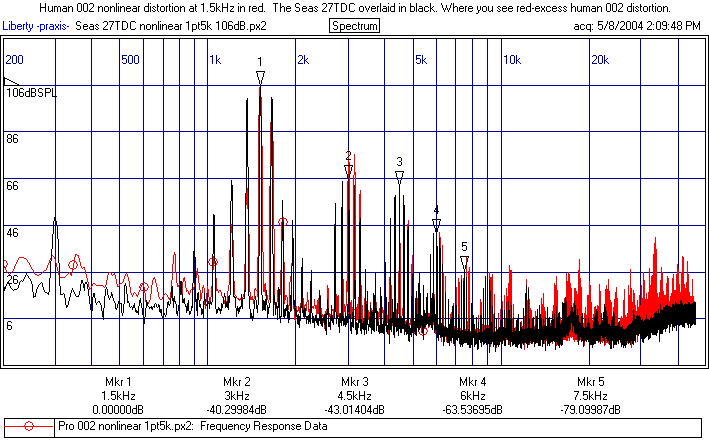

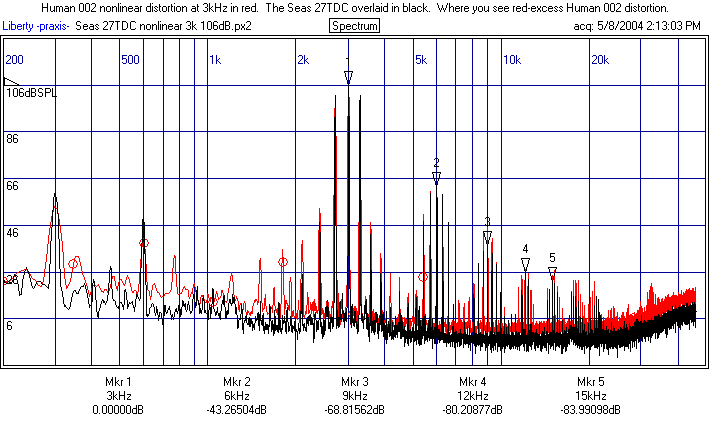

Nonlinear distortion

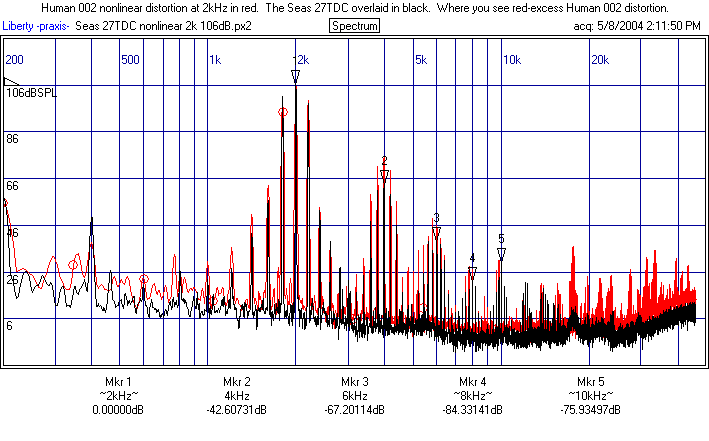

Note-pay very close attention to the colors. For 1.5, 2, 3, 5kHz, the Human tweeter is in RED. For the others, it's BLACK. READ the subheadings!

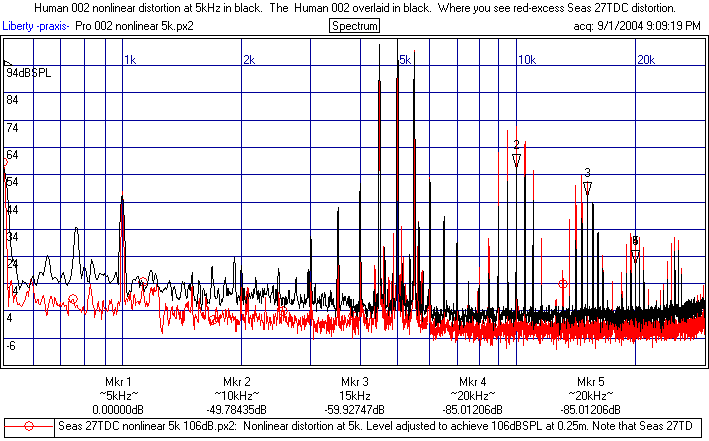

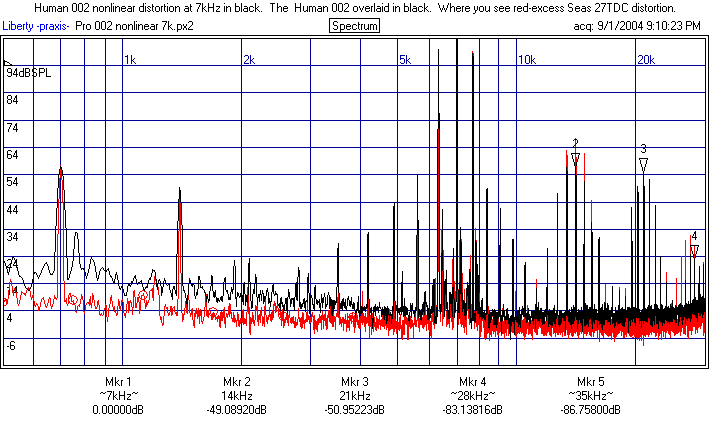

Starting here, the Human tweeter is now in BLACK. I did this because at 5kHz and above, the Seas starts having slightly more nonlinear distortion and it's easier to see if the colors are reversed.

Comments

A well built tweeter. Quite a bit of frequency response irregularity, though interestingly, the linear distortion curves look respectable, only moderately worse than the 27TDC. Very good nonlinear distortion numbers-but some of this may be artifactually low, given the drooping FR curve. Still, even corrected for flat, the nonlinear distortion numbers look very good, much better than the high Fs would suggest. If you can at least modestly effectively contour the curve to your liking, this should be a very good tweeter. Still, it seems like alot of work!
