Vented Box Graphs

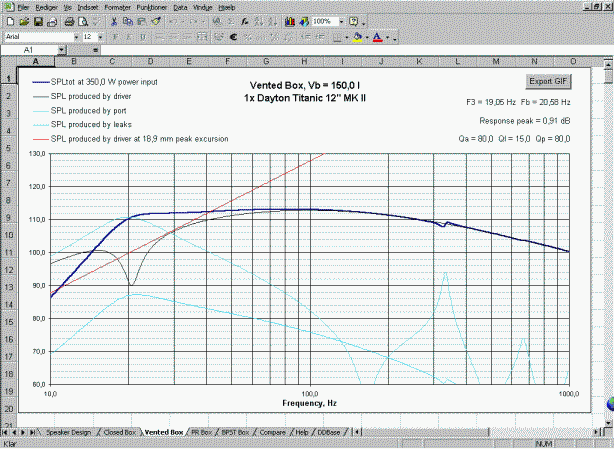

Frequency Response
Frequency Response Graphs
Total sound pressure level at specified power input
Sound pressure level produced by driver alone at specified power input
Sound pressure level produced by port alone at specified power input
Sound pressure level produced by leaks alone at specified power input
Sound pressure level produced by driver alone at an excursion of Xmax

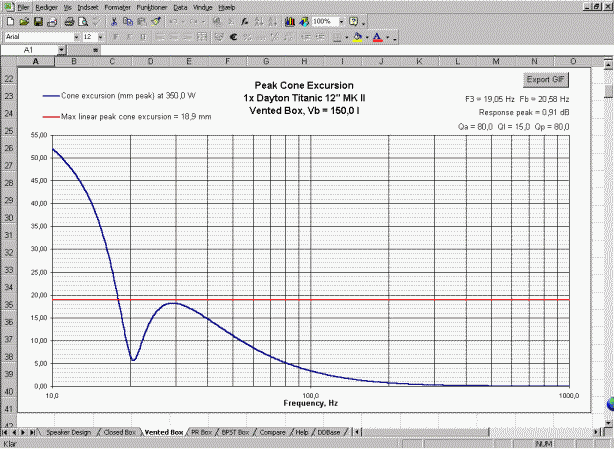

Cone Excursion
Driver Excursion Graphs
Driver peak excursion at specified power input
Specified driver Xmax

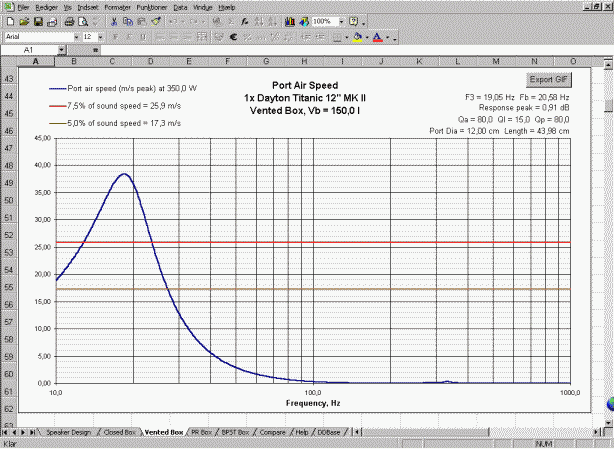

Port Air Speed
Port Air Speed Graphs
Port air speed at specified power input
Air speed corresponding to 7.5% of sound speed
Air speed corresponding to 5% of sound speed

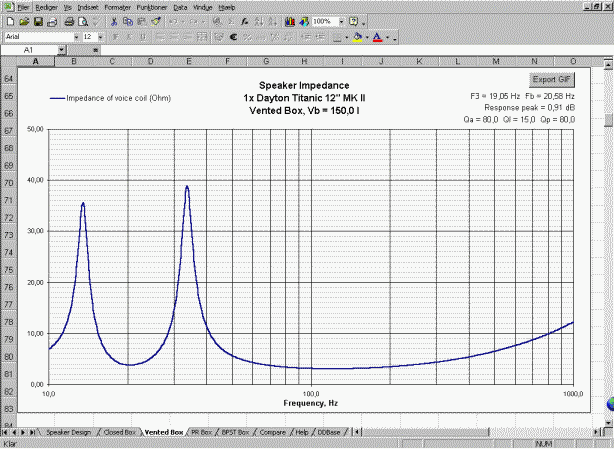

Impedance
Impedance Graph
Impedance of driver in Vented Box

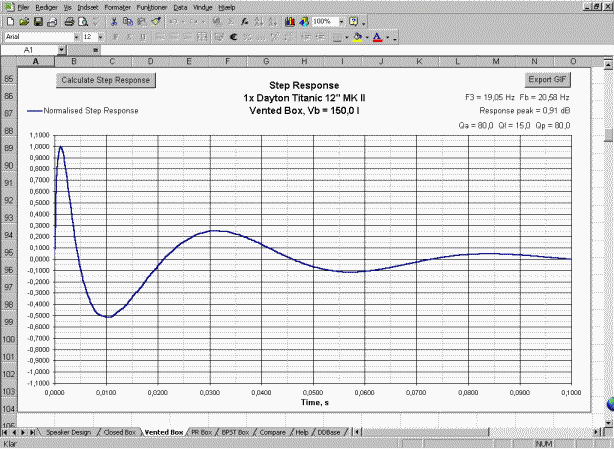

Step Response
Step Response Graph
Normalised Step Response
You have been listening to some funky jazz.
Last updated 4/10-2008
