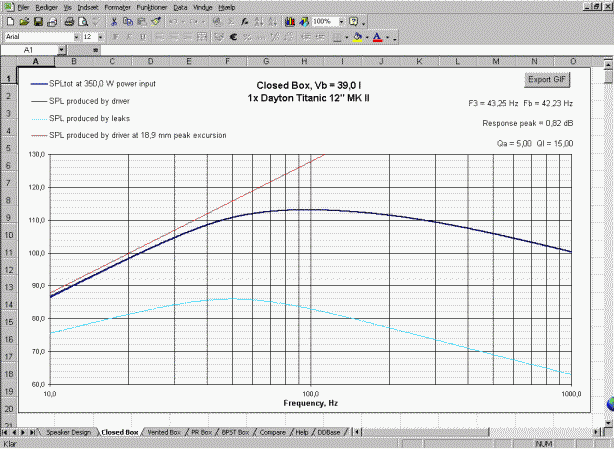

Frequency Response

Frequency Response Graphs

• Total sound pressure level at specified power input
• Sound pressure level produced by driver alone at specified power input
• Sound pressure level produced by leaks alone at specified power input
• Sound pressure level produced by driver alone at an excursion of Xmax

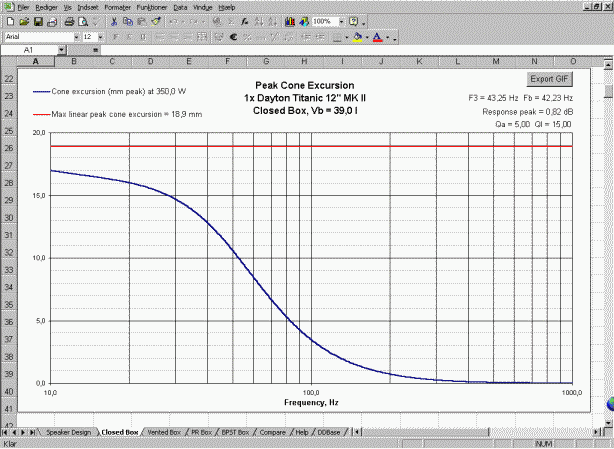

Cone Excursion

Driver Excursion Graph

• Driver peak excursion at specified power input
• Specified driver Xmax

Impedance

Impedance Graph

• Impedance of driver in Closed Box

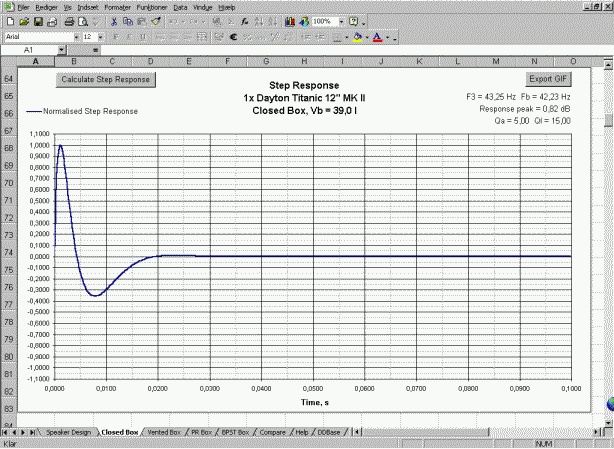

Step Response

Step Response Graph

• Normalised Step Response

---
